Summary

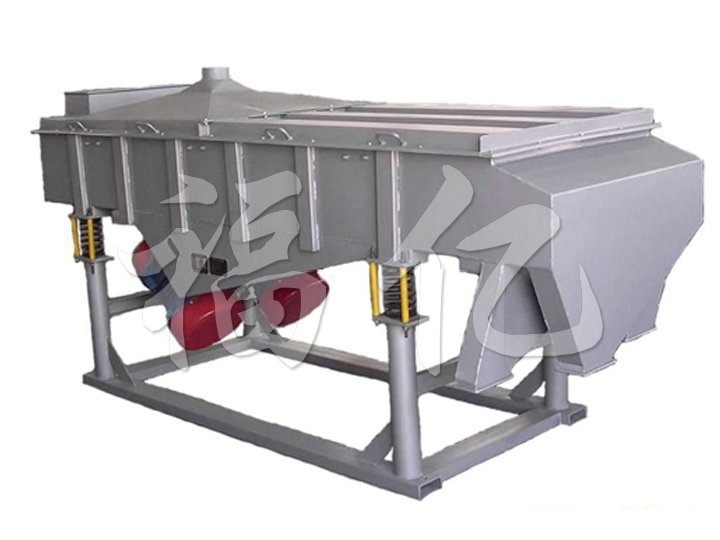

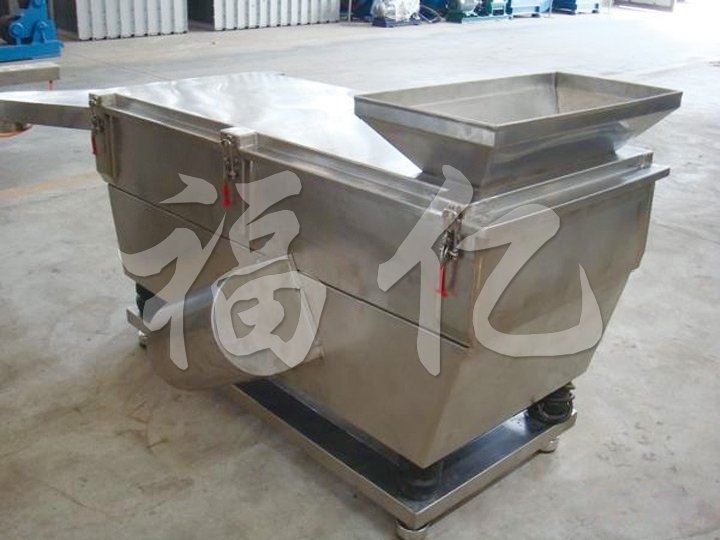

The machine is composed of three parts: the inlet and outlet, screen, screen box, vibration source and shock absorber. The frame is connected with the sieve box with 4-6 sets of soft rubber shock absorbers fixed up and down. The centrifugal force is generated when the power is switched on, and the amplitude is provided with an eccentric block and a shock absorber corresponding to control, so as to achieve the best working performance required to make the material have a shock and loose screening process. Widely used in pharmaceutical, food, chemical, metallurgical, electronic and other industries to screen the ideal equipment.
Technical specifications
|
Model |
Capacity |
meshes |
Motor power |
Vibration frequency |
Exciting force |
Upper outlet height |
Middle exit height |
Lower exit height |
Overall dimension |
Weight |
|
FS-0.5M2-X |
450 |
2-150 |
0.2×2 |
1400 |
0-2.5×2 |
800 |
680 |
500 |
1300×770 |
220 |
|
FS-0.7M2-X |
650 |
2-150 |
0.2×2 |
1400 |
0-2.5×2 |
850 |
750 |
530 |
1700×680 |
280 |
|
FS-0.8M2-X |
750 |
2-150 |
0.2×2 |
1400 |
0-2.5×2 |
850 |
750 |
530 |
1600×830 |
320 |
|
FS-1.2M2-X |
1100 |
2-150 |
0.2×2 |
960 |
0-5×2 |
880 |
760 |
520 |
1900×980 |
450 |
